Controller Mod Info

Demon Workshop is the first to offer true mouse-click style rear buttons known as Demon Switches. Demon Switches were designed and made in house and perfected through a multi-month project of trial and error. Not only are these easier and more satisfying to press, they are more responsive and have a lifespan of ~10 million presses (which is 33x the lifespan of tactile rear buttons). I've had nothing but great reviews on these and have seen many PRs broken using Demon Switches.

These are by far our most popular rear button option.

This is a 3 piece design which allows for clicking from multiple angles instead of only from a straight on angle.

Available for
- PS4
- PS5
- Edge
- Xbox

These can be selected on new builds or can be added to sent in controllers.

Tactical rear buttons are the standard rear buttons many controller companies use, such as Scuf (buttons under paddles), BattleBeaver, Cinch, etc. These are tried and tested and are familiar. Lifespan is around 300,000 clicks before you can experience inconsistent inputs or they stop working altogether. Tactical rear buttons can be installed on a new controller, or you can send in an existing controller to have your back buttons replaced.

Available for
- PS4
- PS5
- Xbox

Demon bumpers and triggers change the press of a stock bumper or trigger into a satisfying mouse click press. This is a big benefit in FPS games as well as others. The response time is faster and allows you to fire more shots in less time. This mod is not recommended for racing games, as it will convert the bumper or trigger into an on/off switch.

Selecting this option will remove any haptic feedback from the triggers.

Lifespan ~10 million clicks

Available for
- PS4
- PS5
- Edge
- Xbox (Triggers Only)

Demon face/dpad buttons, just like the Demon bumpers/triggers, turn stock face buttons and D-pad into a satisfying mouse click press. Very snappy and a claw player's favorite.

Unlike others, ours is not a cheap premade kit utilizing the stock face buttons and mechanical buttons.

Ours uses a custom designed ribbon and true mouse click switches for the most satisfying and responsive presses.

Currently only available in black, other colors to come.

Switch rating ~10 million clicks

Available for
- PS4
- PS5
- Edge

TMR modules are the newest craze in the gaming industry as they solve a long term problem of stick drift. This is done by removing the standard metal contact and carbon track and replacing them with a sensor and magnet to track positions instead.

TMR modules have the same tension as stock stick modules (~70g/f).

Stick drift is caused when the metal contactor rubs the carbon material away resulting in deadspots. This can cause severe drift or for the stick to act very sporadic.

If you play on a 0 deadzone, you will likely still see slight movement as TMR modules are still raw reading sticks. There is a centering tolerance of around 3% (3 deadzone in game) due to sticks relying on a spring and plastic to recenter to 0.0000 everytime. It is just not realistic.

Available for
- PS4
- PS5
- Edge
- Xbox

Stick tension allows you to customize the force required to move the thumbstick. Available in lower or higher tensions.

Changing tension directly affects the force required to click L3/R3 depending on which stick you tension. Lowering tension will make it easier, increasing will make it harder.

Lower tensions are popular on the left stick for easier movement while some like to increase their right stick tension to improve aiming accuracy.

Using a taller thumbstick lowers the force required to move your stick as you are adding more leverage.

Adjusting tension to a very high tension (normally +50% and higher) can increase the centering tolerance to around 5% as you are making it harder for the stick to recenter.

Options are

-40% ~40g/f
-25% ~52g/f
+33% ~95g/f
+50% ~112g/f
+66% ~125g/f
+100% ~150g/f

Stock Modules and TMRs are ~70g/f. All options have tolerances of about 10%.

Available for
- PS4
- PS5
- Edge
- Xbox (TMR Only)

Remap chips are available anytime you add rear buttons to a controller. This allows you to change what buttons the rear buttons mimic.

Say you normally run your buttons as X|O but want to play another game where a different mapping would help you better. The remap chip allows you to change them to any combination on the controller.

Remap instructions are listed in the header or drop down menu if you're on mobile.

Available for
- PS4
- PS5
- Edge
- Xbox

If you order a controller with rear buttons (either tactical or Demon Switches), you will need to indicate what stock button you would like your rear button to mimic. When choosing your button mapping, think of it as if you're holding the controller while playing. Left hand presses left buttons, right hand presses right buttons (NOT as if you're looking at it from the back, that will result in a backwards mapping).

Buttons available for mapping:

-X (A)

-O (B)

-Triangle (Y)

-Square (X)

-D-pad UP

-D-pad Down

-D-pad Left

-D-pad Right

-L1 (LB)

-R1 (RB)

-L2 (LT)

-R2 (RT)

-L3 (LS)

-R3 (RS)

You can opt to convert the micro USB port that comes standard on PS4 controllers to a USB-C port.

There is not a performance gain but converting to USB-C will allow the use of USB 3.0 cables or faster for a more stable speed connection.

The main benefit is longevity and less likely chance of random disconnects. The Micro port is a common fail point on PS4 controllers.

Available for PS4 only.

Rumbles are the motors in any controller that give off vibration during gameplay. These are commonly removed to lessen the weight of the controller since most players don't use them.

Rumbles will automatically be removed if demon switch rear buttons are selected or if any other placements besides 1 or 2 with tactical buttons are selected. This is due to space constraints.

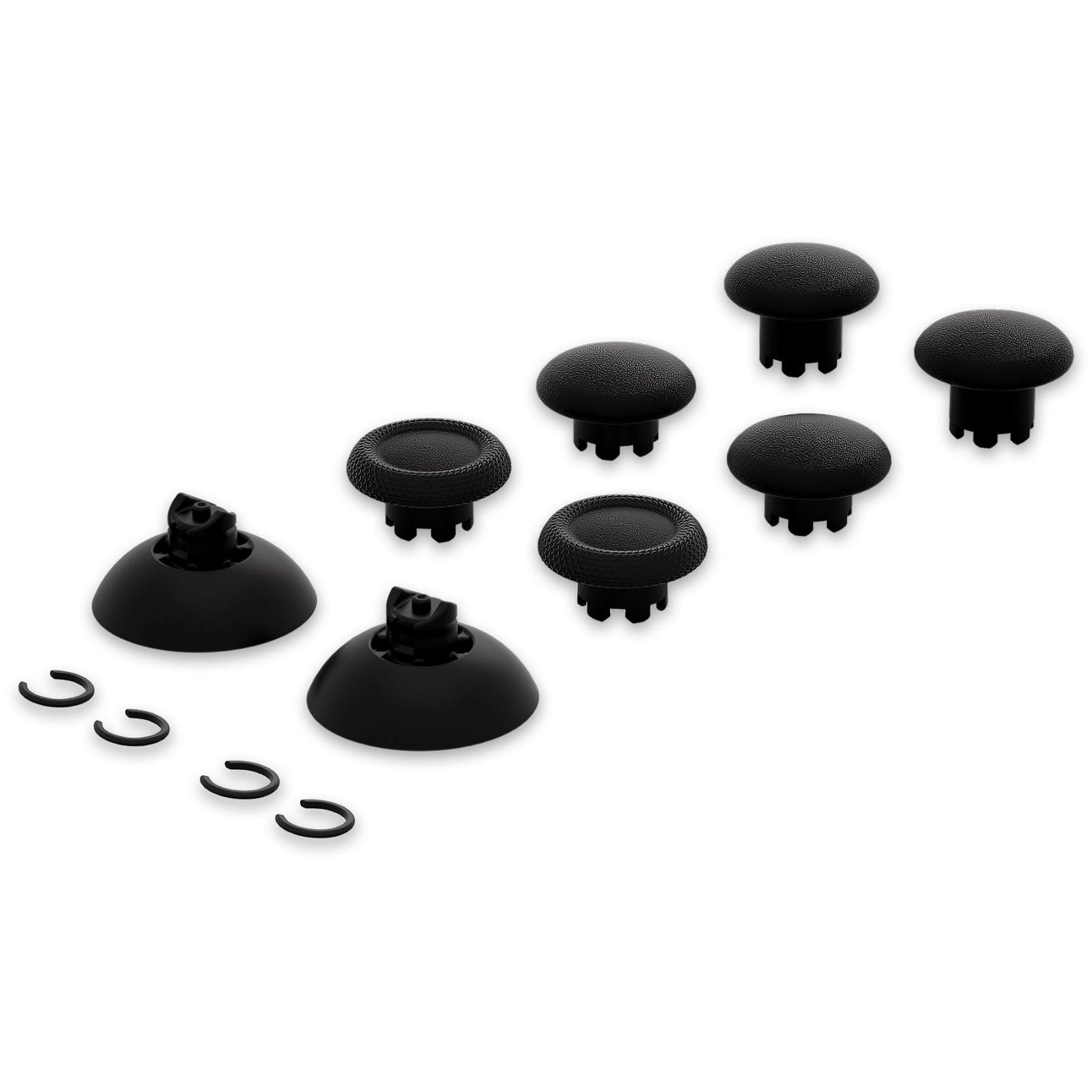

We offer a large variety of thumbstick options to find the perfect fit for every customer.

 Thumbstick options:

• PS4
• PS5
• Xbox Series X
• PS5 Edge Interchangable (Stock, Short Dome, Tall Dome)
• Pro
• Scuf Impact Variety
• Scuf Reflex Variety
• Scuf Instinct Variety
• Interchangable Top Variety



To view our full thumbstick color selection, please visit the Color Catalog section of the website.



PS4 Sticks

PS5 Sticks

Xbox Sticks

Edge Tops

(Edge Only)

Edge Sticks

TG Tops

(Edge Only)

TG V1

TG V3

Pro Sticks

Z Sticks

Scuf PS5 Sticks

(Fits PS4 and PS5; Black only)

Scuf PS4

(Fits PS5 and PS4; Limited stock and color availability)

Ex Interchangeable Sticks

Laser Marking is another way to personalize your controller. We are able to do many fonts and most simple logos. The laser does not do color and will only work on Stock Black or White colors.

Available for

-PS4 (Touchpad)
-PS5 (Touchpad & Trim Piece)
-Edge (Touchpad)
-Xbox (Faceplate)

We offer a wide range of color options, grip options, and design options. To view them please refer to the color catalog.

Soft Touch Colors - soft touch colors refer to the clear coat applied after the shell is painted. It adds a soft feeling yet grippy feel to the controllers which in enhanced when you sweat.

Splatter Grip - splatter grip is a rubber based material that is splattered on the handles of the controller to enhace grip.

Rubberized Grip - rubberized grip is rubber that is overmolded onto the shells to add a grippy surface

Translucent shells are often raw ABS plastic with no added clear coat or grip
